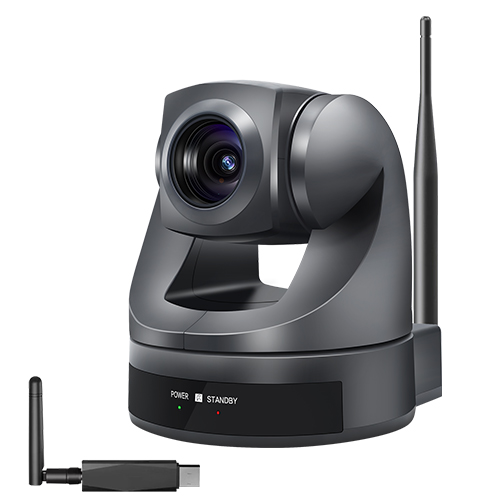

SH-HK10WF

product details

Product features:


1080P Full HD

The HK10WF adopts a new generation of 1/2.8-inch COMS high-quality sensors, which can achieve high-quality images with a resolution of 1920 * 1080.


Wireless 4K output


External dual band WiFi 6 dangle (optional), supporting HK10WF upgrade * 4K resolution, including higher picture quality modes and longer transmission distance modes. Different modes can be applied according to the usage environment, with a maximum transmission distance of 50 meters (unobstructed) for distance mode, and a recommended transmission distance of 10-15 meters for image quality mode *.


*The theoretical speed * value of WiFi 6 can reach 9.6Gps, which is about three times that of WiFi 5, and the signal stability is further improved.


Low illumination

The all-new CMOS image sensor with ultra-high signal-to-noise ratio can effectively reduce image noise in low illumination conditions. At the same time, 2D and 3D denoising algorithms are applied to significantly reduce image noise. Even in ultra-low illumination conditions, the image remains clean and clear, with a signal-to-noise ratio of over 55dB.


USB 2.0 interface

Supports full HD 1080p video output.


Remote control

By using RS232 and RS422/485 serial ports, it is possible to cascade control multiple cameras.


Multiple encoding formats


USB 2.0 supports YUY2, MJPEG, H265, and H264 encoding formats, reducing host encoding and decoding pressure.


Multiple installation methods

Multiple installation methods, including desktop, ceiling, and wall mounted installation.


Multiple drawing methods to choose from

You can choose between wired and wireless mapping methods according to your needs.


Support external USB A-type expansion interface

USB A-type expansion ports can be used according to usage needs, and products such as microphones can be installed externally to further increase product usage scenarios.


产品规格:

摄像机

USB 2.0视频格式

1920*1080、1280*720、960*540、800*600、720*576、720*480、640*480、、640*360

传感器类型

SONY 1/2.8英寸COMS

扫描方式

逐行

镜头焦距

3倍光学变焦,f=3.35mm(广角端)~10.05mm(远端)

聚焦方式

自动、手动

*照度

1.5 Lux

电子快门

1/25s ~ 1/10000s

白平衡

自动、室内、室外、一键、手动

背光补偿

支持

数字降噪

2D&3D数字降噪

信噪比

≥55dB

水平视场角

99.6°(W) ~30.6°(T)

垂直视场角

56° ~ 17.2°

水平转动范围

±170°

垂直转动范围

-30° ~ +90°

水平转动速度范围

1° ~ 60°/s

垂直转动速度范围

1°~ 60°/s

倒装

支持

预置位数量

遥控可设9个,键盘最多可设200个预置位

预置位精度

0.1°±10%

USB 特性

协议

UVC1.1

操作系统

Window7及以上、MacOS、Linux,Android

UVC视频编码格式

YUY2、MJPEG、H.264、H.265

UVC视频分辨率

320*240、640*480、720*576、800*600、1280*720、1920*1080等

UVC视频帧率

*30

UVC PTZ控制

支持

输入输出接口

USB接口

1路, USB 2.0, Type-A型插座

通讯接口

1路, RS232 IN: 8针小型DIN, *距离: 30米, VISCA/Pelco-D/Pelco-P协议

1路, RS422/485 IN/OUT: 9芯凤凰口,*距离: 1200米, VISCA/Pelco-D/Pelco-P协议

电源接口

DC 12V IEC60130-10(JEITA 标准 RC-5320A)TYPE4

一般规范

输入电压

DC 12V

输入电流

700mA(*)

功耗

*8W

工作温度

0~40℃

储藏温度

-10-60℃

尺寸

(长)147X(宽)136X(高)156mm

颜色

黑灰色

重量

790g

随机附件

DC 12V电源适配器,IR遥控器,操作说明书, USB视频线,吊装支架

Wifi Dangle规格参数

UVC特性

协议

UVC1.1

USB版本

USB 3.0

操作系统

Windows7及以上、MacOS、Linux、Android

UVC视频编码格式

MJPEG、YUY2

UVC视频帧率

*30帧

无线参数

波段:

2.4GHz

功耗

5V/0.4A

无线网络标准:

IEEE 802.11b/g/n 1T1R

WIFI 图像输出

MJPEG

3840*2160、1920*1080、1280*720、960*540、800*600、640*360、720*576、720*480、640*480、352*288、320*240

YUY2

1920*1080、1280*720、960*540、800*600、640*360、720*576、720*480、640*480、352*288、320*240

其他

使用环境

建议室内

使用距离

2.4G建议50米以内使用

工作温度

-10℃——40℃

存储温度

-20℃——60℃

颜色

黑色/白色

重量

0.3kg
