Product Overview:

The Shenghua Shitong SH-HK690R high-definition camera series for information and communication has complete functions, excellent performance, and rich interfaces; Advanced ISP processing technology and algorithms enable vivid and realistic image effects, uniform brightness, strong light and color hierarchy, high clarity, and good color reproduction. Supports H.265/H.264 encoding, making the image smoother and clearer under low bandwidth.

Product features:

Ultra high definition image: using a 1/2.5-inch 8.51 million pixel high-quality CMOS image sensor, with a resolution of up to 3840 × 2160, with an output frame rate of up to 30 frames per second, presenting clear and realistic high-definition videos, vividly displaying the expressions and actions of characters.

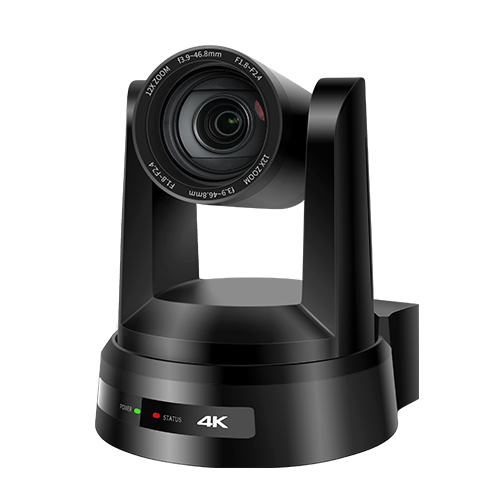

Optical zoom lens: 12X optical zoom lens, 71 ° wide angle.

Automatic focusing technology: Advanced automatic focusing algorithms enable the lens to quickly, accurately, and stably complete automatic focusing.

Low noise and high signal-to-noise ratio: Low noise CMOS effectively ensures the ultra-high signal-to-noise ratio of camera videos. Adopting advanced 2D and 3D noise reduction technologies, further reducing noise while ensuring image clarity.

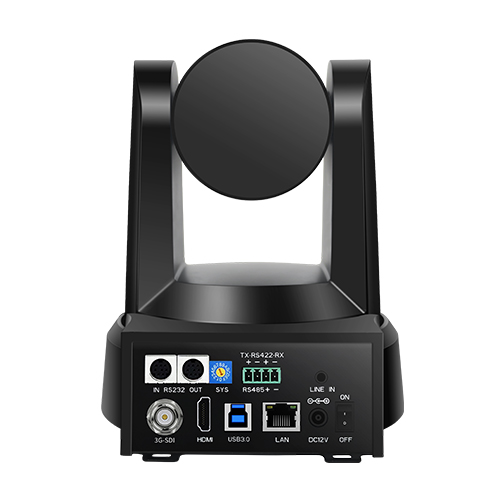

Multiple video output interfaces: supports HDMI, SDI, USB3.0, LAN supports simultaneous audio and video output; The LAN interface supports POE power supply, USB3.0 supports dual stream, and SDI supports transmission of up to 100 meters in 1080P60 format.

USB 3.0 supports dual stream: it supports both primary and secondary streams, and both can be output simultaneously; Supports YUY2, MJPEG, H.264, NV12, and H.265 video encoding formats.

Built in gravity sensor: Built in gravity sensor, supporting automatic pan tilt function, convenient for engineering installation.

Multiple network protocols: supports ONVIF, GB/T28181, RTSP, RTMP, VISCA Over IP, IP VISCA, RTMPS, SRT protocols; Support RTMP push mode, easily connect to streaming servers (Wowza, FMS); Supports RTP multicast mode.

Control interface: RS422 is compatible with RS485, RS232-IN, RS232-OUT, and RS232 interface supports cascading.

Multiple control protocols: supports VISCA, PELCO-D, PELCO-P protocols, and automatic recognition protocols.

Silent pan tilt: Using high-precision stepper motors and precision motor drive controllers, ensuring smooth operation and low noise of the pan tilt.

Multiple preset positions: Supports up to 255 preset positions (remote control set to call 10).

Multiple remote controls: Users can choose between infrared or wireless remote controls based on the environmental conditions they are using. The 2.4G wireless remote control is not affected by angle, distance, or infrared interference. Support remote control signal transmission function, making it convenient for backend devices to use.

AI tracking: Equipped with a built-in high-speed processor and advanced image processing and analysis algorithms, users can choose real-time tracking and area tracking according to their usage environment.

There are many application venues: conference, education, live streaming, medical, government affairs, cloud video, collaborative office, multimedia integration, emergency command, broadcasting, judiciary, public security, military and other system applications.
