High definition view, unlimited live streaming
Product features:
4K ultra high definition screen display:
Adopting the new generation SONY 1/2.8-inch high-quality CMOS, it can achieve * 4K30 ultra high definition resolution image output and record larger scenes;
20x optical zoom lens:
Equipped with a 20x optical telephoto lens, supporting mainstream horizontal viewing angles of 58.7 °, it meets the needs of more scenes such as large-scale conference halls, blackboards in staircase classrooms, and other realistic details restoration;

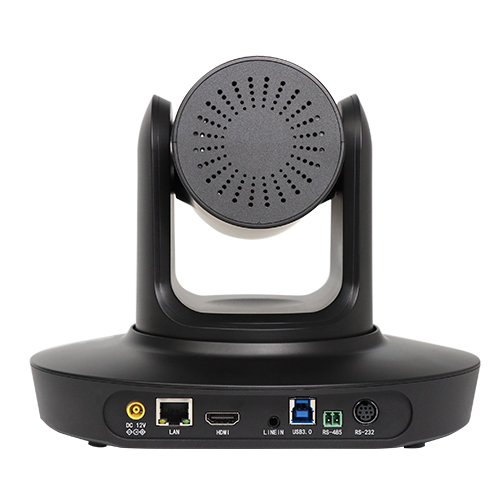

USB3.0+HDMI+IP triple interface, rich application scenarios:
Compatible with all mainstream video output interfaces, HDMI+USB3.0 can simultaneously output 4K30 resolution;
Low light:
The brand new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low light conditions. Simultaneously applying 2D&3D digital noise reduction, significantly reducing image noise, even under ultra-low lighting conditions, the image can still be kept clean and clear, and the signal-to-noise ratio of the image is higher than 45dB;
Infrared remote control signal transmission function:
In addition to receiving its own infrared remote control signals, it can also receive signals from consumer infrared remote controls and send them to video conferencing terminals through the VISCA port;
Multiple video compression standards:
Different interfaces support multiple video compression formats such as YUY2, H265, MJPG, and H264;
Multiple network protocols
Support network protocols such as ONVIF, SRT, RTSP, RTMP, etc;
Multiple control protocols
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, and automatic recognition protocol;
Camera | |
Lens | 20X optical zoom, f=5.2mm(w)~104mm(f) |
Horizontal View Angle | (W) 58.7°～3.2° (T) |
Diagonal | (W) 61°~3.64°(T) |
Vertical View Angle | (W) 32.2°~1.8°(T) |
Focal Length | 5.2~104mm |
Iris | F1.5～F3.0 |
Sensor | SONY 1/2.8” CMOS |
Effective Pixels | 8.29 Megapixels |
Minimum Illumination | 0.1 Lux |
S/N Ratio | 45dB |
Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness Priority |
White Balance | Auto, Indoor, Outdoor, Keyed, Auto Tracking |
Backlight Compensation | Support |
Digital Noise Reduction | 2D&3D Digital noise reduction |
Special Effect | Normal |
Mirror | Support |
Electronic Flip | Support |
Flip | Support |
Audio and video interface | |
Digital Output | HDMI1.4 HDMI Mode: HDMI, DVI HDMI Color Space: RGB、YCbCr422、YCbCr444 Resolution: 3840*2160 p30/25, 1920*1080 p60/59.94/50/30/29.97/25 1280*720 p60/50 |
LAN | Supports Multiple Code Streams Encoding Format: H.264, H.265 Profile: Main, High, Baseline (H.264 only) Streaming Protocol: RTMP, RTSP, SRT Main Code Stream Resolution:1080 (p30/25/20/15/10/5/3) Auxiliary Code Stream Resolution: 640*480、640*360、480*360、352*288、320*240、176*144 （p 30/25/20/15/10/5/3） |
USB | Protocol: UVC1.1, UAC1.0 Operating System: Window7 and above, MacOS10.10 and above, Ubuntu16.04 and above or systems compatible with V4L2-driven UVC Video Coding Format: YUY2, MJPEG MJPEG: 320*240、352*288、640*360、640*480、720*480、720*576、800*600、960*540、1280*720、1920*1080、2560*1440、3840*2160 YUY2: YUY2：320x240、352*288、640x360、640x480、720x480、720x576、800x600、960x540、1280x720、1920x1080 UVC Video Frame Rate: Max.30 UAC Audio Coding Format: PCM |
Audio In | Unbalanced analog input (Line In) 3.5mm Sampling rate: 44.1K, 48K Encoding format: AAC |
Pan/Tilt | |
Pan Range | -168°~+168° |
Tilt Range | -30°~+90° |
Pan Speed | 0.1°/S~60°/S |
Tilt Speed | 0.1°/S~60°/S |
Pan Positioning Accuracy | 0.1°±10% |
Tilt Positioning Accuracy | 0.1°±10% |
Preset Speed | 7 Levels |
Preset Position Numbers | 255 |
Control | |
Control Mode | IP, RS-232(RJ45), RS-422/485 In(RJ45), IR Remote |
Network Control Protocol | ONVIF, VISCA Over IP |
Serial Control Protocol | VISCA, Pelco D, Pelco P |
Power Supply | |
Input Voltage | DC 12V IEC60130-10(JEITA Standard RC-5320A)TYPE4 |
Input Current | Max.0.79A |
POE | 802.3af (Optional) |
Power Consumption | Max.9.5W |
Others | |
Operational Environment | Indoor |
Operational Temperature | -10-40℃ |
Storage Temperature | -20-60℃ |
Camera Dimensions | 224.1*170.1*172.2mm |
Color | Black |
Weight | 1200g |
