Product Overview:

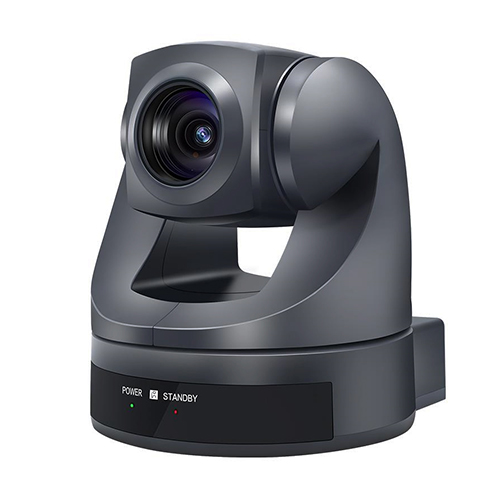

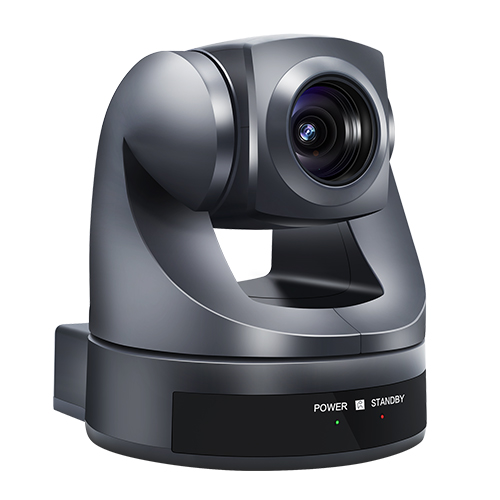

The high-definition 1080P conference camera SH-HD10UH is a high-definition communication color camera developed by our company mainly for the video conferencing industry, using a 1/2.9-inch CMOS image sensor. The effective pixel count reaches 3.5 million, which can be combined with any codec and other systems to output high-quality and high-resolution images.

The SH-HD10UH high-definition video conferencing camera inherits many powerful functions of the D70 video conferencing camera, coupled with its own ultra clear image quality, becoming a truly powerful high-definition camera. SH-HD10UH can output 16:9 scale images and achieve high-speed, silent shake/pitch operations, as well as shooting objects over a large area, with minimal shaking. It also has many convenient functions, such as automatic focus/exposure, multiple preset positions, infrared and remote control, and so on. The high-definition 1080P conference camera SH-HD10UH is an ideal choice for video conferencing, remote teaching, and enterprise training.

Main applications:

It can be widely used in video conferencing, remote teaching, remote healthcare, worship churches, event scenes, courts, multimedia centers, chain stores, transportation, airports and other monitoring places.

Functional features:

1080P high-definition video, 20x zoom, capable of capturing close-up shots from afar;

58.7 ° wide angle lens to meet the needs of small scenes and large field of view;

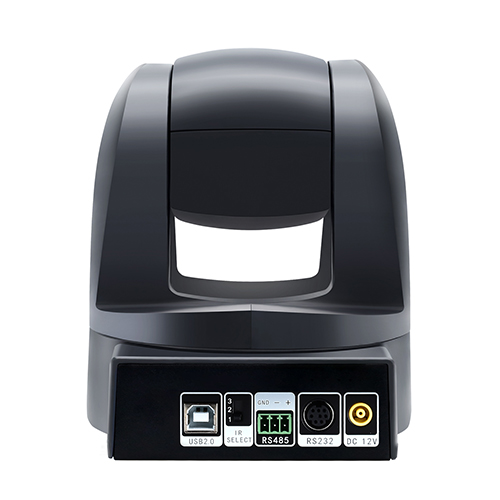

L supports USB output to connect to computers, plug and play with no drive, simple connection, and can adapt to various conference and video applications; Support the use of USB cable for simultaneous video transmission and control of pan tilt;

Supports USB interface input, can connect omnidirectional microphone to camera, and synchronously transmit audio and video to computer through a USB cable;

Supports HDMI high-definition output, supports docking and matching with mainstream devices, and can directly connect to conference terminals, televisions, large screens, projectors, etc;

355 degree rotating gimbal, capable of capturing almost panoramic and multi angle images;

Multi functional infrared remote control, paired with a multifunctional OSD menu, can flexibly adjust image effects and adapt to complex venue environments;

RS232C/485 remote control, using RS485 (VISCA protocol) interface, enables remote high-speed communication control of all camera settings and pan/pitch/zoom operations;

Compatible with SONY VISCA protocol and PELCO P/D protocol;

Supports image flipping, desktop and ceiling mounting, standard 1/4 inch screw holes, and can be directly mounted on a tripod.

技术参数：
