SH-M40S

product details

Product Overview:

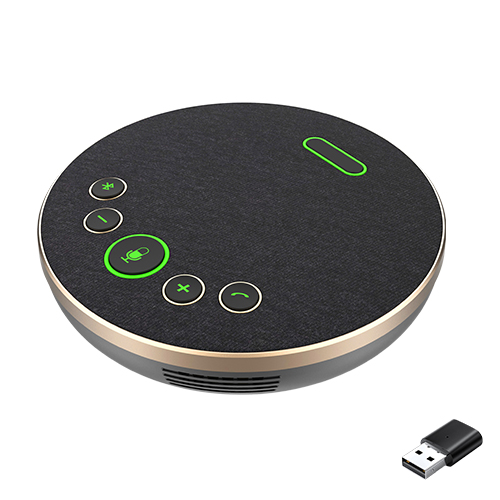

The Shenghua Shitong SH-M40S omnidirectional microphone adopts advanced high fidelity audio processing technology and is embedded with a DSP digital audio processor. The high pitched sound is clear and the low pitched sound is rich, reproducing the true sound color; Equipped with high-power high fidelity speakers, the sound of calls between two or more parties is clear and loud, providing an immersive experience for remote meetings. 4 arrays of highly sensitive microphones with a 6-meter pickup radius, capable of achieving 360 ° omnidirectional pickup, covering small and medium-sized conference rooms without blind spots; Equipped with intelligent noise reduction and echo cancellation algorithms, filtering out noise, leaving only human voices and fearless of noisy environments.


The Shenghua Shitong SH-M40S omnidirectional microphone can be connected to other communication terminals such as computers and video terminals through USB interface, suitable for various small and medium-sized conference rooms and personal voice communication.


Functional features:

Full duplex deep echo cancellation, 48k broadband voice call high-definition technology, intelligent microphone mixing, dynamic noise suppression, and automatic gain technology.


The main microphone is equipped with 4 unidirectional microphones, forming a 360 degree omnidirectional pickup with a collection distance of 12 meters.


Supports Bluetooth transmission function


Supports USB transfer


L supports AUX interface and connects headphones through a 3.5mm audio cable.


Built in battery of 2400mA, with a working duration of over 4 hours. The standby time is 90 days.


The speaker system adopts a multi-core digital unit with a volume of up to 85dB, and 16 levels of speaker volume digital adjustment.


Turn on/off, answer/hang up, mute the microphone, increase/decrease volume, Bluetooth and other button functions.


Technical  parameters:



Name

Bluetooth linear omnidirectional microphone

Model number

HC-M40S

Pick up radius

6 meter radius, 12 meters in diameter

Type of microphone

4 Microphone Array

Pick up range

360° omnidirectional pickup

Microphone frequency response

100Hz~22KHz

Maximum output volume

85dB

Speaker frequency response

100Hz~22KHz

Output interface

USB Type C(Audio IN/OUT), 3.5mm audio OUT

Wireless connection

Bluetooth wireless

Keystrokes

On/offAnswer/hang up, Bluetooth keysVolume +, Volume -, microphone mute

Indicator light

Mute, volume and volume indication

Full duplex

Support

Noise suppression (DNR)

Support

Automatic Gain (AGC)

Support

Storage temperature/storage humidity

- 10C ~ +60C / 20% ~ 95%

Operating temperature/operating temperature

- 10C ~ 50C / 20% ~ 80%

Built-in lithium battery

2400mAH Operating time > 4 hours

Voltage/current

USB   5V,500mA


Power

3W

Running environment

Windows, Mac OSX, Android, Linux

Products

160mmx160mmx38mm

Packaging

221mmx190mmx55mm

Net weight

450g

Gross weight

850g

Random accessories

1.8m USB cable *1, instruction manual *1, OTG adapter *1, wireless receiver *1
