产品型号

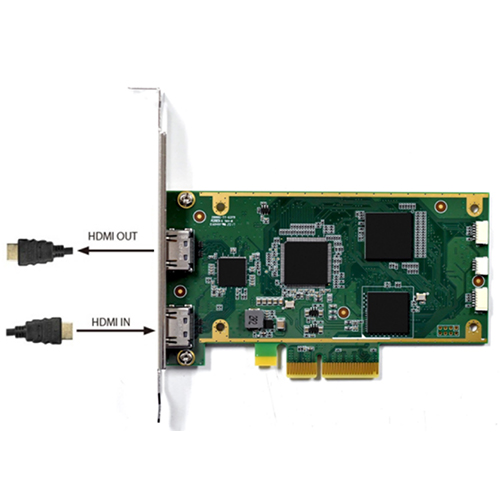

SH-PK710N1-HDMI

*视频

输入

4096×2160p@60/50fps in → 4096×2160p@60/50fps out

编码方式

Software Compression, Real-Time Mode

尺寸

120×68.9 ( mm ) PCIe Low Profile

板卡插槽

PCIe×4 (Gen2)

视频输入

接口

1×HDMI 2.0
(HDR Support HDR10/HLG, RGB/YUV 420/422/444 8/10bits, 3D Support HDMI1.4B 3D specification)

视频输出

接口

1×HDMI 2.0
(Loop-Through, HDR Support HDR10/HLG, RGB/YUV 420/422/444 8/10bits, 3D Support HDMI1.4B 3D specification)

显示视频

模式

YV12, NV12, YUY2, RGB24, RGB32, V410, Y410

视频输入

分辨率

HDMI 2.0
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps

2560×1440p@144fps

1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

录制视频

模式

H.264 ( Software Compression )

录制视频

分辨率

HDMI 2.0
4096×2160@60/50/30/25/24fps
3840×2160@60/50/30/25/24fps

2560×1440p@144fps

1920×1080p@240/144/120/100fps
1920×1080p@60/50fps
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
1280×1024p@60fps
1280×960p@60fps
1024×768p@60fps
800×600p@60fps
640×480p@60fps
720×480p@60fps
720×576p@50fps
720×480i@60fps
720×576i@50fps

音频输入

1×HDMI Embedded Audio

音频输出

1×HDMI Embedded Audio

音频格式

Stereo / 16-bit / 32000 ~ 48000Hz

看门狗

✓

一机多卡

∞

SDK

开发语言

Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi

操作系统

国产Kylin / Windows 7 / Windows 8 / Windows 8.1 / Windows 10

Linux 2.6.14 or Higher ( 32-bit and 64-bit )
